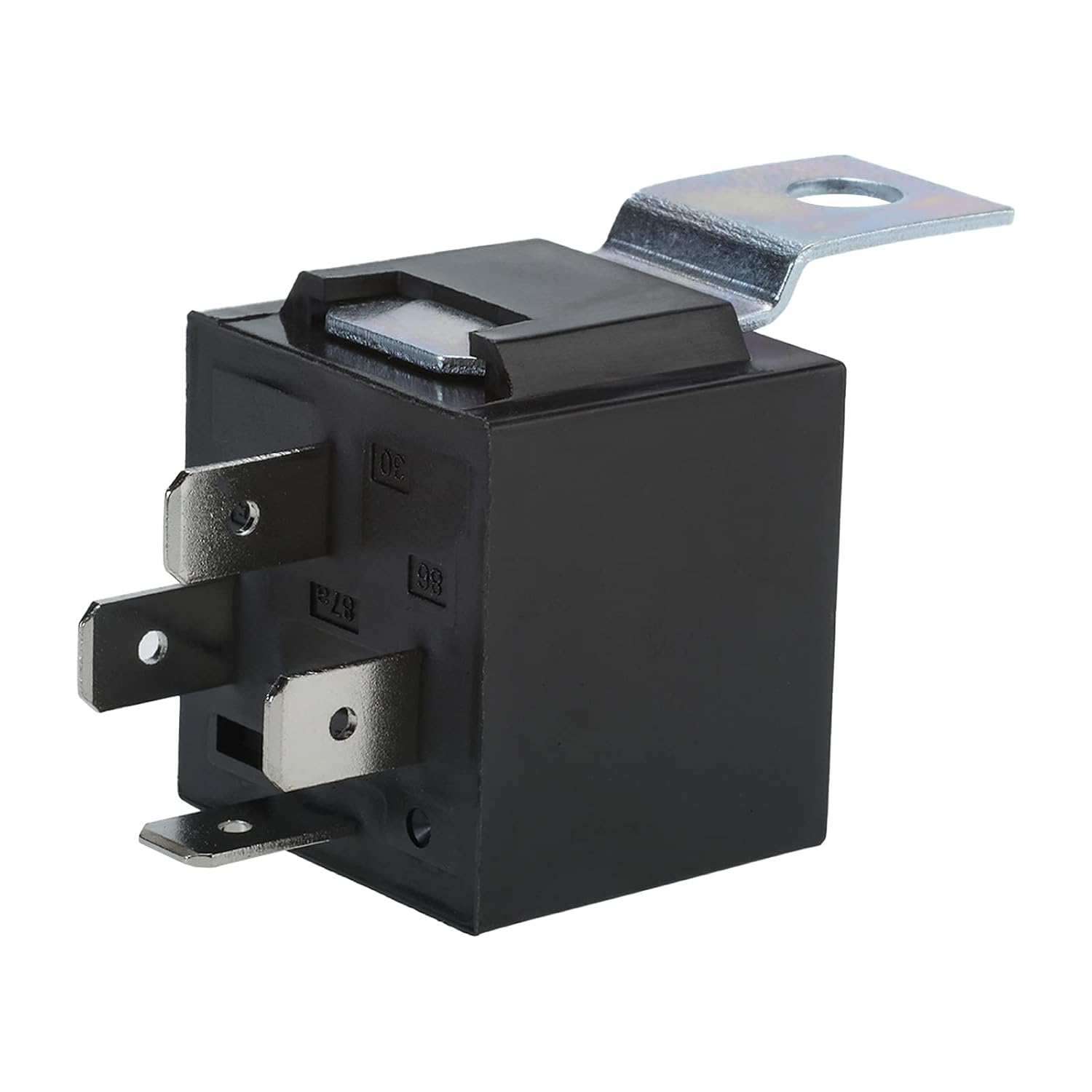

Relay Switch 4 Pin 12V DC 40 AMP, 4 Prong Automotive Relay for Auto Trucks Cars, 25 Packscat stick,pet
4.0 (55 items)
Limited Time Sale$16.73 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 227305526 | Release Date | 2026/05/09 | List Price | $11.16 | Model Number | 227305526 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications ▪ Name : Relay Switch ▪ Nominal Coil Voltage : 12 V DC ▪ Max Switching Current : 40A ▪ Max Switching Power : 560 W ▪ Coil Power : 1.8 W ▪ Coil Resistance : 80 Ω ▪ Must Operate Voltage : 6~8 V DC ▪ Must Release Voltage : 0.6~3.6 V DC ▪ Maximum Applied Voltage : 15.6 V DC ▪ Contact Resistance : 100mMAX (at6VDC 1A) ▪ Life Expectancy Electrical : 100,000 Operations (at30 Operations/minute) ▪ Life Expectancy Machanical: 10,000,000 Operations ▪ Temperature Range : -30 ~ +80 degrees Celsius ▪ Vibration Resistance : 10~55Hz, 1.5mm ▪ Hunidity : 40% ~ 85% ▪ Insulation Resistance : 100mΩ Min at500VDC ▪ Dielectric Strength Between Open Contacts : 500VAC (for one minute/sec) ▪ Between Contactw and coil : 750AC (for one minute/sec) ▪ Operate Tice : 7ms ▪ Release Tice : 5ms ▪ Pin Specifications: 30-VDC, 85-Ground, 86-Trigger, 87-Output N/O Features ▪ Single Pole Single Throw Universal Relay. ▪ 40 A high switching capability. ▪ The 4 terminals on the relay have been sealed to bring more stable performance. Applications ▪ This 4 Pin Relay Switch Set fits for automotives and devices equipped with a 12 Volt DC power source. ▪ Normally used on car sound systems, security systems, and other applications. Note ▪ Professional installation is highly recommended ! ▪ Manual measurement, error 1-3mm, depending on the actual situation, please understand. ▪ Please feel free to contact us if you have any question about the product. We would try our best to solve any problem for you.
- 【Features】: 4 Pin 12V DC 40A Relay Switch. Single Pole Single Throw Universal Relay. Features 40 A high switching capability.
- 【Design】: 4 Pins includes 30-VDC, 85-Ground, 86-Trigger, 87-Output N/O.
- 【Applications】: This 4 Pin Relay Switch Set fits for automotives and devices equipped with a 12 Volt DC power source. Normally used on car sound systems, security systems, and other applications.
- 【Installation】: Professional installation is highly recommended ! Suitable for various complicated installation environments.
- 【Note】: Please feel free to contact us if you have any question about the product. We would try our best to solve any problem for you.
| UPC | 617256075029 |
|---|---|
| ASIN | B095K42KTH |
| Model | DO-0179 |
| Wattage | 560 watts |
| Brand Name | AuInLand |
| Unit Count | 15.0 Fluid Ounces |
| Part Number | DO-0179 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | Shanghai Shouxu Trading Co Ltd. |
| Mounting Type | Screw Mount |
| Connector Type | Plug-In |
| Current Rating | 40 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 80 Ohms |
| Contact Material | Silver Alloy |
| Contact Current Rating | 40 Amps |
| Maximum Switching Current | 40 Amps |
| Minimum Switching Voltage | 6 Volts (DC) |
