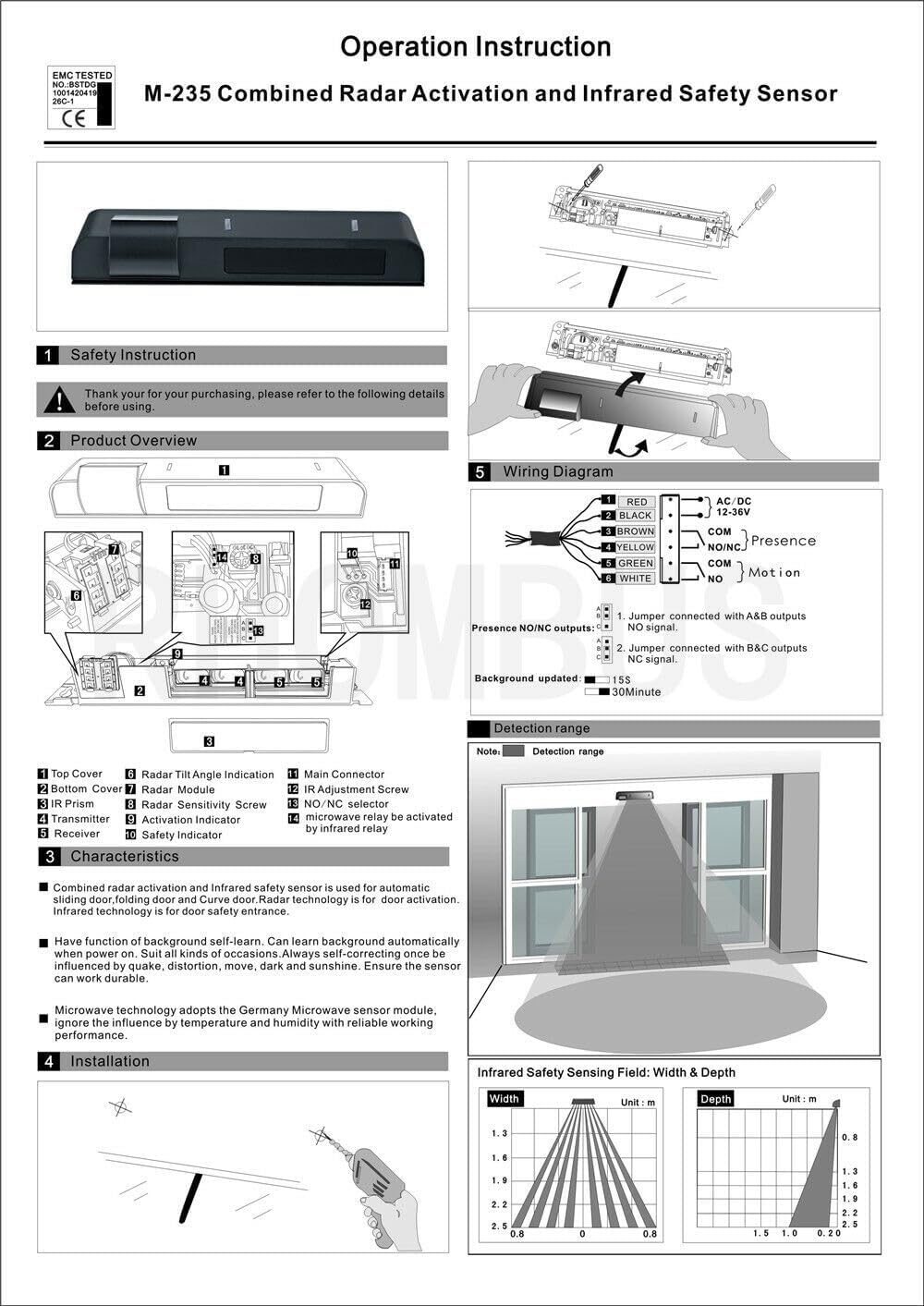

Combined Radar Activation & Infrared Safety Sensor for Auto-Door Control System (Black)
4.6 (114 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214413595 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 214413595 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

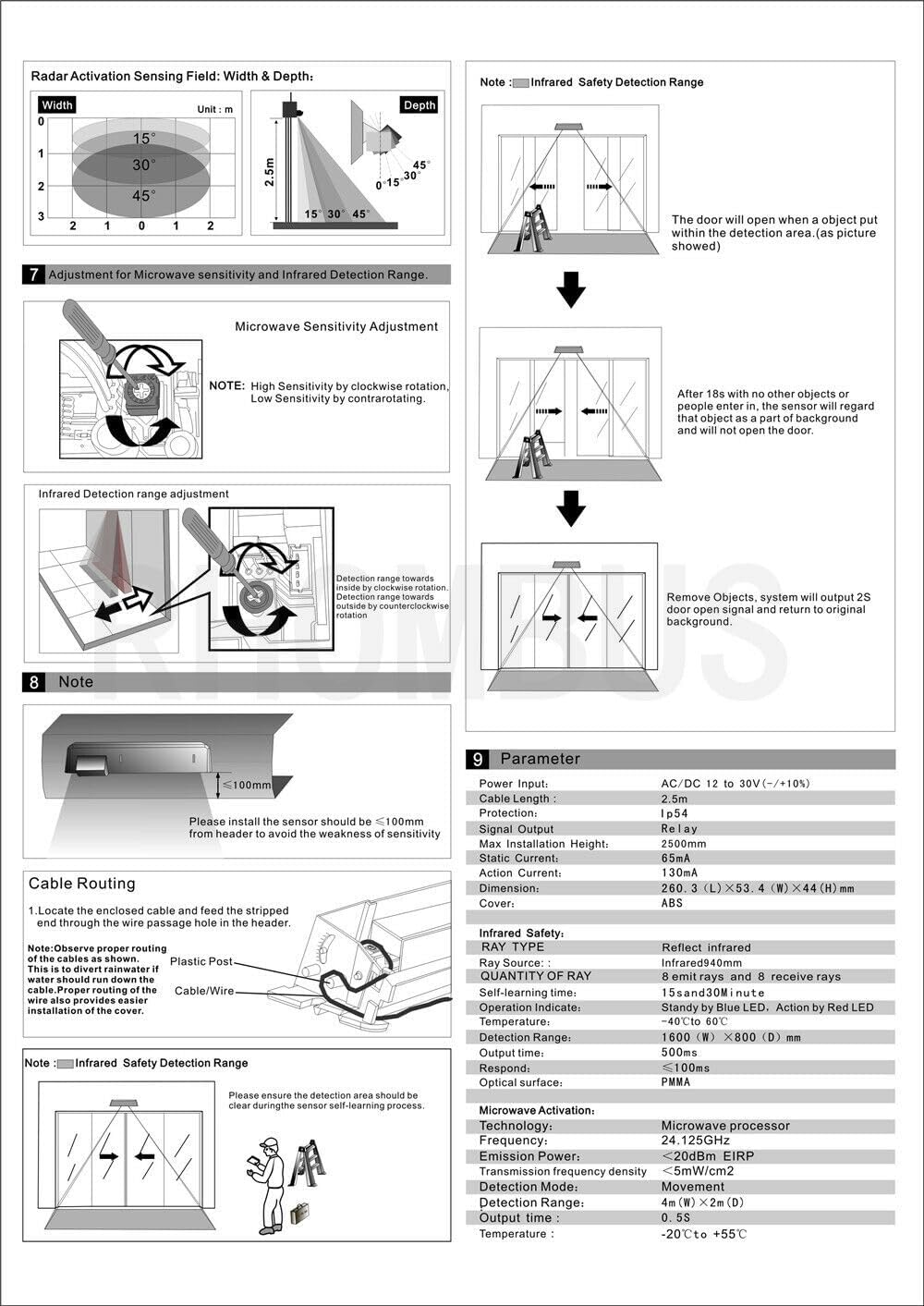

Parameter: Power supply: AC/DC12-30V Cable Lenght: 2.5m Signal Output: Relay Max. installation Height: 2500mm Static Power: 65mA Action Current: 130mA Dimension: 260.3Lx53.4Wx44Hmm Cover: ABS Infrared Safety: Ray Type: Reflect infrared Ray Source: Infrared940mm Quantity of Ray: 8 emit rays and 8 receive rays Self-learing time: 10s Operation Indicate: Standby by Blue LED, action by Red LEd Temperature: -40~60C Output time: 500ms Respond: Less than 100ms Optical surface: PMMA Microwave Activation: Technology: Microwave processor Frequency: 24.125GHz Emission Power: <20dBm EIRP Transmission Frequency density: <5mW/cm2 Detection Mode: Movement Detecton Range: 4m(W)x2m(D) Output time: 0.5s Temperature: -20~55C Package：1pcs
- Infrared safety sensor combination
| Warranty | 1 year |
|---|---|
| Item model number | M-235 |
