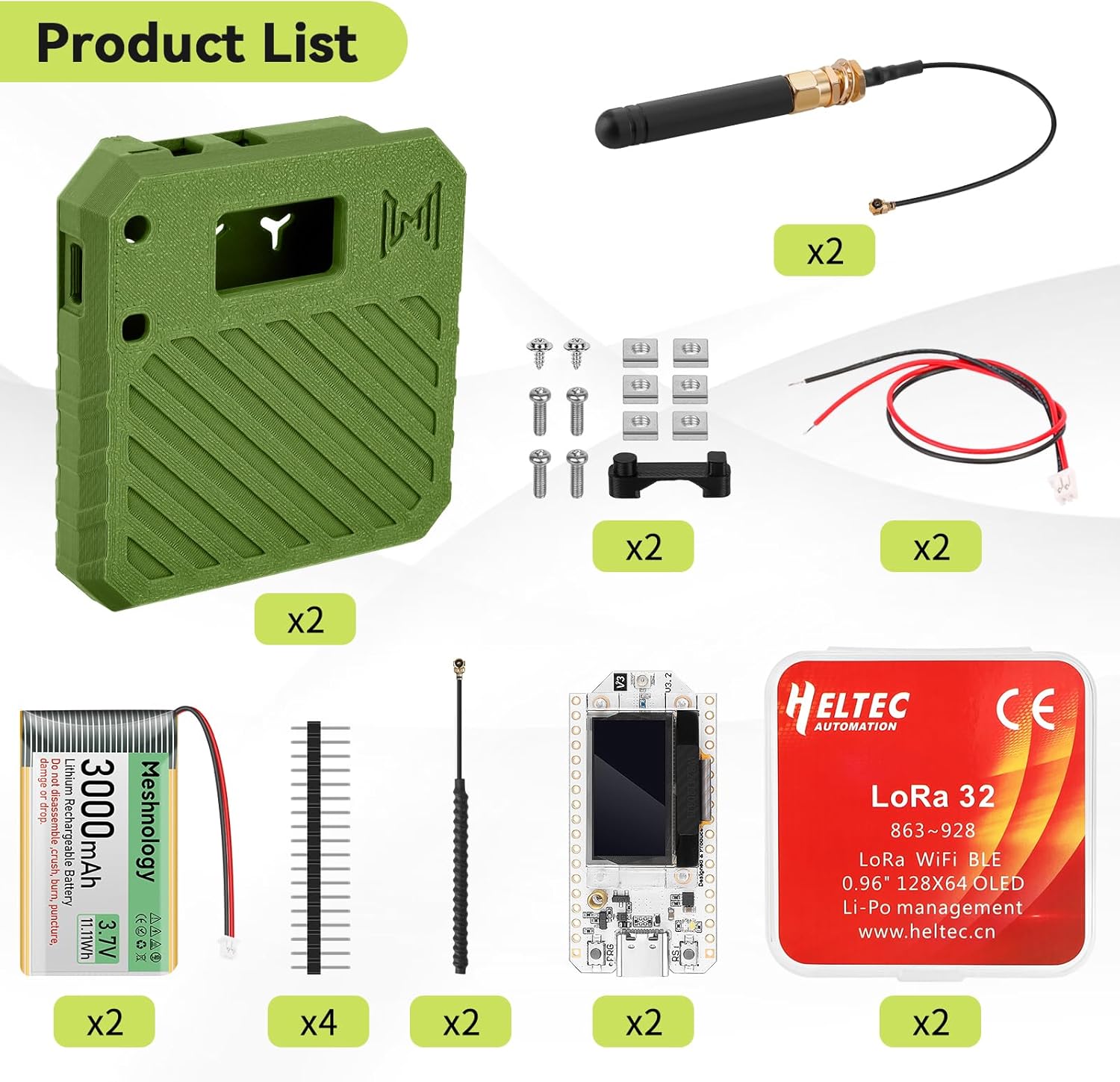

2Pack ESP32 LoRa V3 Development Board + 3.7V 3000mAh Battery + Custom Case Set - with 915MHz Meshtastic Antenna and SMA Antenna Surport WiFi Bluetooth LoRa V3 Devices for Arduino LoRawan IOT N33 Green
4.3 (59 items)
Limited Time Sale$42.23 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215201100 | Release Date | 2026/04/12 | List Price | $28.16 | Model Number | 215201100 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【LoRa V3 processor】Our ESP32 LoRa V3 development board is equipped with an advanced dual-core processor and 3.7V 3000mah battery life, running processing at a clock speed of 240 MHz, which greatly improves your work efficiency. The single battery-powered main board can last up to 26 hours in USB powered state, ensuring that your network projects are not affected
- 【Stability】Our products avoid the factor of unstable signal output by combining the form of a package, while RF shielding prevents interference, and integrated Wi-Fi, LoRa, and Bluetooth functions experience seamless connection, ideal for remote communication applications such as LoRaWAN and wireless sensor networks, equipped with two 915MHz Meshtastic antennas
- 【Meshtastic Case】Our protective case is made of durable materials. The custom N33 case holds LoRa V3 ESP32 development board, 3000mAh battery and 915MHz antenna to protect your ESP32 LoRa V3 development board from dust, shock and various environmental factors. At the same time, the back of the case is designed with cooling holes, and whether for radio testing or outdoor applications, this case will keep your device in the best condition.
- 【3000mAh battery】Our development board products are equipped with 3.7V 3000mAh battery and onboard JST 1.25 interface, which not only provides strong battery capacity but also a single battery powered main board can last up to 26 hours in USB powered state, which greatly improves the battery life. At the same time, it has the functions of charge and discharge management, overcharge protection, battery power detection and automatic switching between USB and battery power supply
- 【User-friendly design】The ESP32 LoRa V3 development board is equipped with a Type-C interface to power the development board and a reserved (U. FL) connector for external LoRa antennas. It also includes a 0.96-inch 128x64 resolution Type-C OLED display, which is ideal for displaying debugging information and battery power. It supports the Arduino development environment and includes an integrated CP2102 USB to serial chip for easy programming and debugging
| Brand | Meshnology |
|---|---|
| Model Name | ESP32 LoRa V3 |
| Manufacturer | Meshnology |
| Model Number | ESP32 LoRa V3 |
| BuiltIn Media | ESP32 LoRa V3 Development Board + 3.7V 3000mAh Battery + Custom Case Set - with 915MHz Meshtastic Antenna and SMA Antenna |
| Mfr Part Number | ESP32 LoRa V3 |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 240 MHz |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Warranty Description | 6 month |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Bluetooth, Wi-Fi |
